For Honda XR50 CRF50 pit bike 70cc 90cc 110cc CDI + Ignition Coil +spark plug

SKU: ZH006

Availability: In stock

$15.20

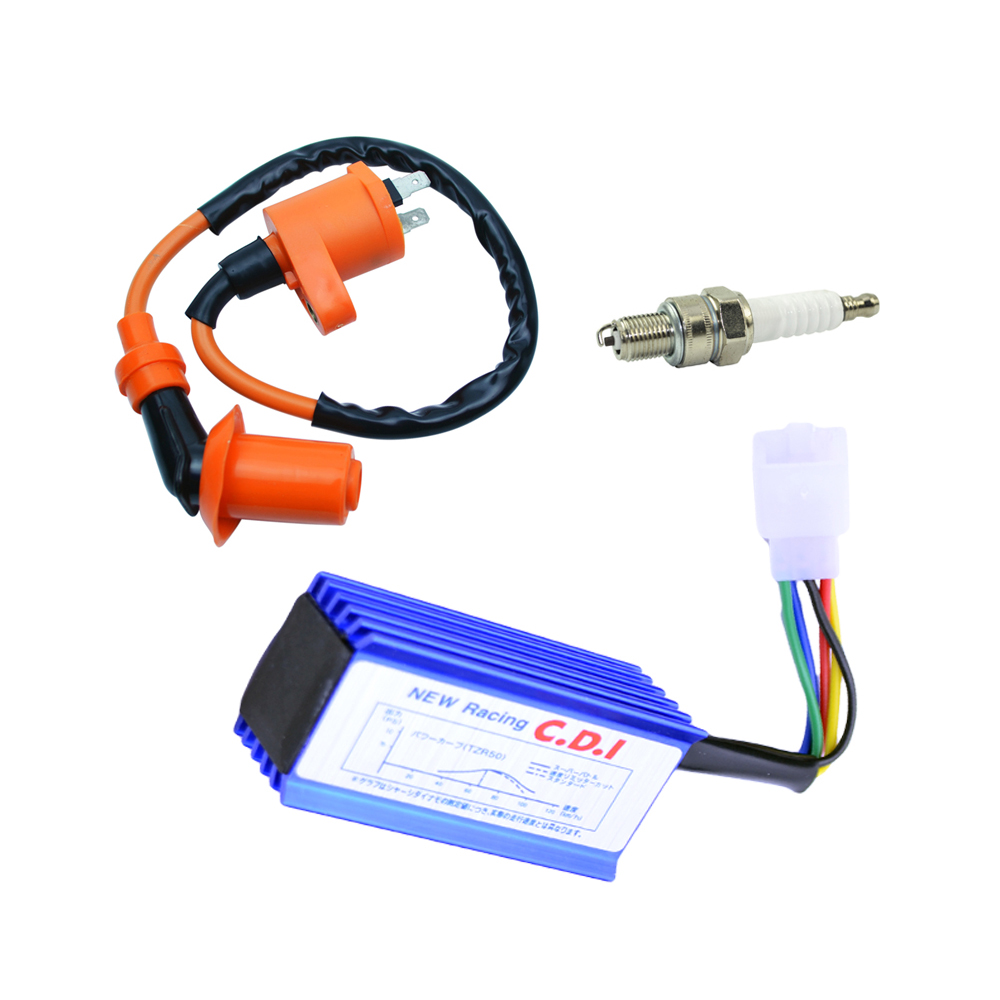

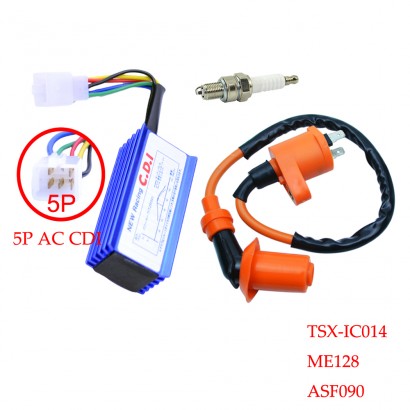

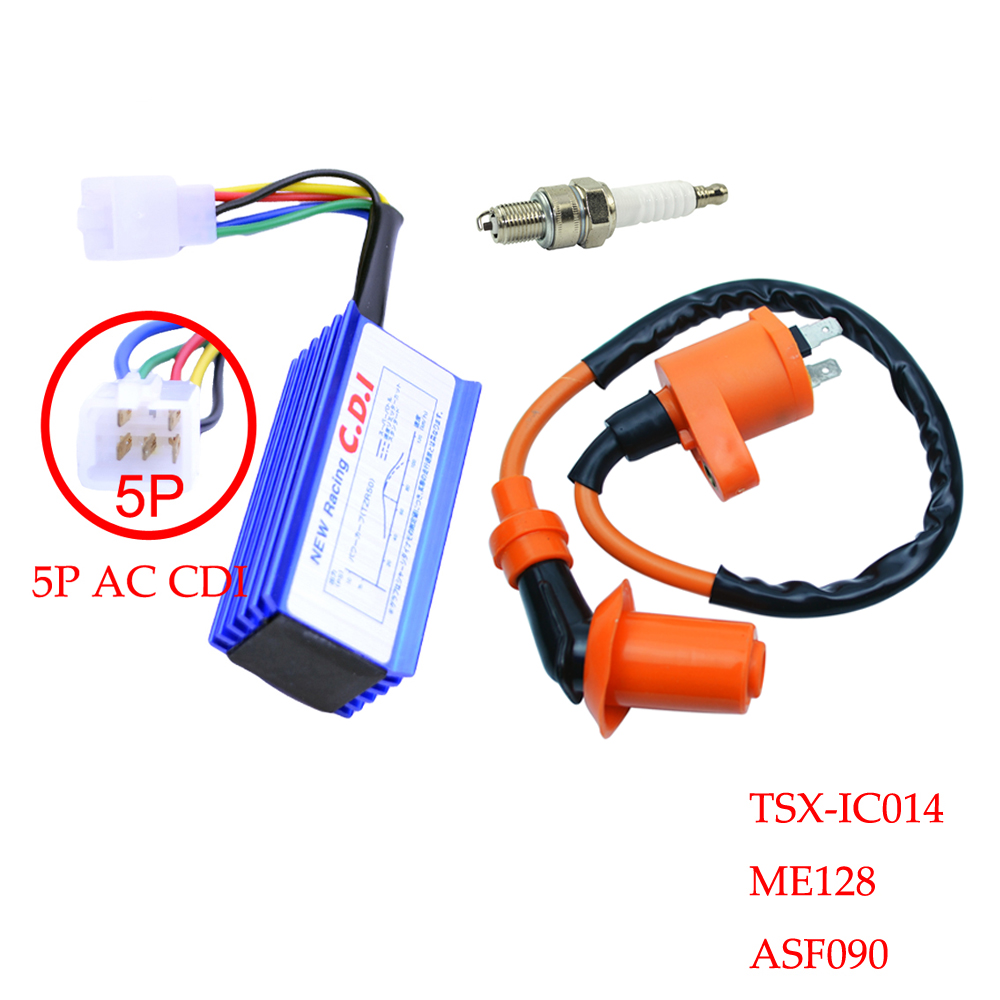

For Honda XR50 CRF50 pit bike 70cc 90cc 110cc CDI + Ignition Coil +spark plug
<>
Product Description:
New 5 pins high super racing performance CDI + Ignition Coil +spark plug for Honda XR50 CRF50 50cc 110cc 125cc dirt pit bike.
This spark plug is a high peformance racing 3 electrode spark plug.
This is a high performance racing CDI for the 50cc, 70cc, 90cc, 110cc and 125cc based engines. It's 5pins with AC ignition system.
Please check the plugs for compatibility before ordering it.

Specification:
Type: CDI + Ignition Coil +spark plug
Fit for: Honda XR50 CRF50 50cc 110cc 125cc dirt pit bike.

Mechanics Note on distinguishing AC fired or DC fired CDI box:
1. In the GY6 6-plug set-up, you have AC if you have 3-wires going into the 4-plug side and you have 2-wires going into the 2-plug side. On the other hand, you have DC if you have the larger CDI box, 3 or 4 wires going into the 4-plug side and only 1 wire going into the 2-plug side.
2. In general, the DC CDI's tend to be larger in size than the AC ones.For example ,the common AC fired CDI box is length 65 x width 36 x height 22 mm or length 58 x width 33 x height 22 mm ,but common DC fired CDI box is larger than AC fired cdi box in size ,suze as length 75 x width 42 x height 24 mm or length 96 x width 55 x height 24 mm .Certainly this size is only for your common original CDI Box reference,don't include the racing cdi box size ,please note.
3. Another test is if the headlights turn on without the engine running, (with just the key on), it is a DC system. In the AC system the headlight requires the engine to be running. Another indication is, if the engine will only run with a battery it is DC. If it will run without a battery, it is a AC system.

Note: Please check wheather you need the AC fired CDI or DC fired CDI for your scooter before you order,thanks

Package Includes:
1 * CDI
1 * Ignition Coil
1 * Spark Plug
