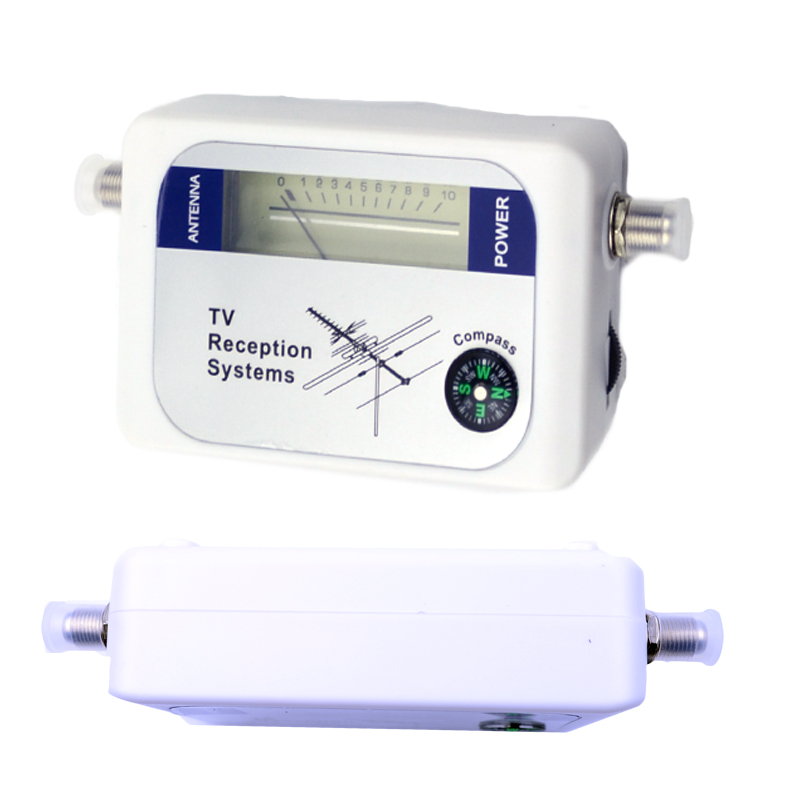

DVB-T Finder Digital Aerial Terrestrial TV Antenna Signal Strength Meter New


Availability: In stock

DVB-T Finder Digital Aerial Terrestrial TV Antenna Signal Strength Meter New


1. Compass With attenuation control function easily locate satellite signal.

2. Corrosion-resistant connectors.

3. In-line IF singal strength meter. Excellent sensitivity.

4. Great for remote satellite antennas.

5. Elegant exterior and convenient to carry.

6. With LCD backlight Specifications;



1.Model No.: GSF-9508.
2.Frequency Range:0.05-0.85G.
3.Insertion Loss:5.0dB.
4.Power Supply:12-24V DC.
5.Input Frequency Rang:VHF:174-230MHz UHF:470-860MHz.
1.Connect the antenna cable to the left F Female and the battery  pack cable to the right F Female. Remove any external amplifier* that  may be connected to the antenna.
2.Adjust the antenna to the best position by watching the meter's  reading. Higher up the scale gives a better signal. If the finder's  reading becomes full scale, adjust the level control knob to reduce the  reading to around 5 (Turning the knob clockwise will decrease the  reading), continue to move the antenna until you have the highest  possible meter reading.
3.Remove the finder and replace any amplifier that was disconnected

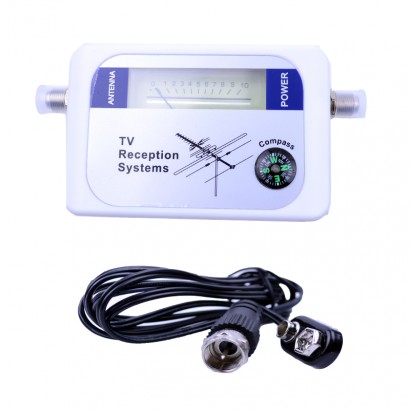

Package Include:
1*Satellite Finder
