Description

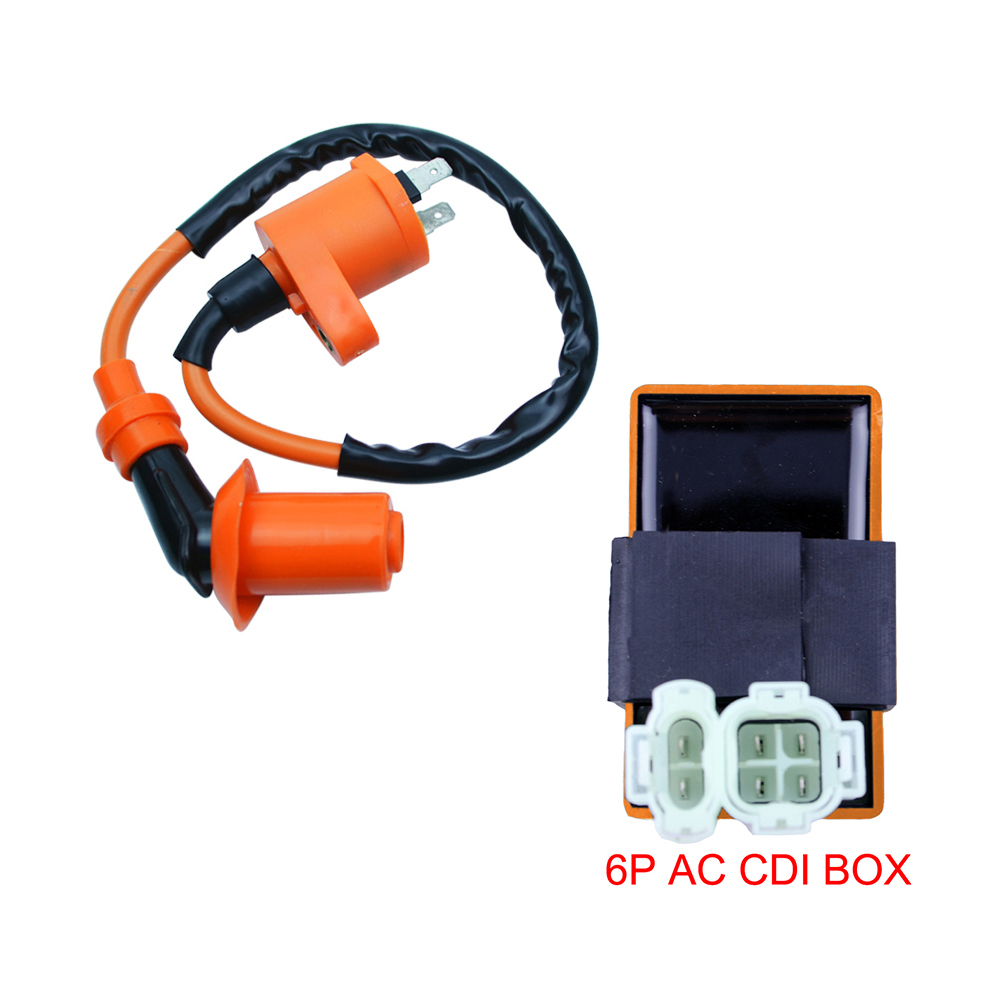

New 6 pins super racing performance CDI + Ignition Coil for Gy6 50cc 125cc 150cc Scooter
Performance Coil will boost your ignition spark intensity considerably, it will eliminate spark plug fouling, decrease hard starting, increase fuel mileage and decrease hesitation. When using the orange performance coil, even in really cold weather, the scooter will start.
The orange CDI is a ignition module that has no rev limit and also has a single stage advanced timing circuit, this means that you can get a faster response to rpm acceleration and a higher rpm limit at top end if you use the orange CDI.
This is a AC fired CDI.
Specification:
Type: CDI + Ignition Coil
Fit for: Gy6 50cc 125cc 150cc Moped ATV Go Kart Scooter Motorcyle
Plug and Play installation makes installation a breeze! If your CDI has the same plug, this will work for you!
High tension performance racing ignition coil for 50cc QMB139 and 150cc/125cc GY6 engine based scooters, ATVs, Go Karts, Mopeds.
The special tight coil design made for current resistance that increases the firing speed.
Fits Brands: Roketa, Sunl, Baja, Kazuma, Carroll Stream Eagle, Taotao, Panterra, Kymco, Redcat Tank Giovanni Aimex Jackel Wildfire Xtreme Seaseng Qlink Yiben Jonway Jmstar, Vento, Tng. and Various copy GY6 models SCOOTERS, GO KARTS, QUADS, DIRT BIKES, DUNE BUGGYS.
How to make sure AC fired or DC fired CDI box:
1. In the GY6 6-plug set-up, you have AC if you have 3-wires going into the 4-plug side and you have 2-wires going into the 2-plug side. On the other hand, you have DC if you have the larger CDI box, 3 or 4 wires going into the 4-plug side and only 1 wire going into the 2-plug side.
2. In general, the DC CDI's tend to be larger in size than the AC ones.For example ,the common AC fired CDI box is length 65 x width 36 x height 22 mm or length 58 x width 33 x height 22 mm ,but common DC fired CDI box is larger than AC fired cdi box in size ,suze as length 75 x width 42 x height 24 mm or length 96 x width 55 x height 24 mm .Certainly this size is only for your common original CDI Box reference,don't include the racing cdi box size ,please note.
3. Another test is if the headlights turn on without the engine running, (with just the key on), it is a DC system. In the AC system the headlight requires the engine to be running. Another indication is, if the engine will only run with a battery it is DC. If it will run without a battery, it is a AC system.
Package Includes:
1* Racing CDI
1* Ignition coil
