5Pin CDI Box for Honda XR50 CRF50 50cc 70cc 90cc 110cc ATV Quad Mini Moto Bike

SKU: BTC-IC029-XR50

Availability: In stock

$5.35
5Pin CDI Box for Honda XR50 CRF50 50cc 70cc 90cc 110cc ATV Quad Mini Moto Bike
<>

Product Description

This is a high performance racing CDI for Honda XR50 CRF50 70 110CC 125CC Pit Bike ATV. It's 5pins,this CDI works with the Honda type plug on it, with an AC ignition system. This CDI is similar to our black performance CDI but has a more aggressive ignition advance curve. This is a performance CDI. We have the best quality ignition parts for Chinese engines! Plug and Play installation makes installation a breeze! If your CDI has the same plug, this will work for you!

Specification:

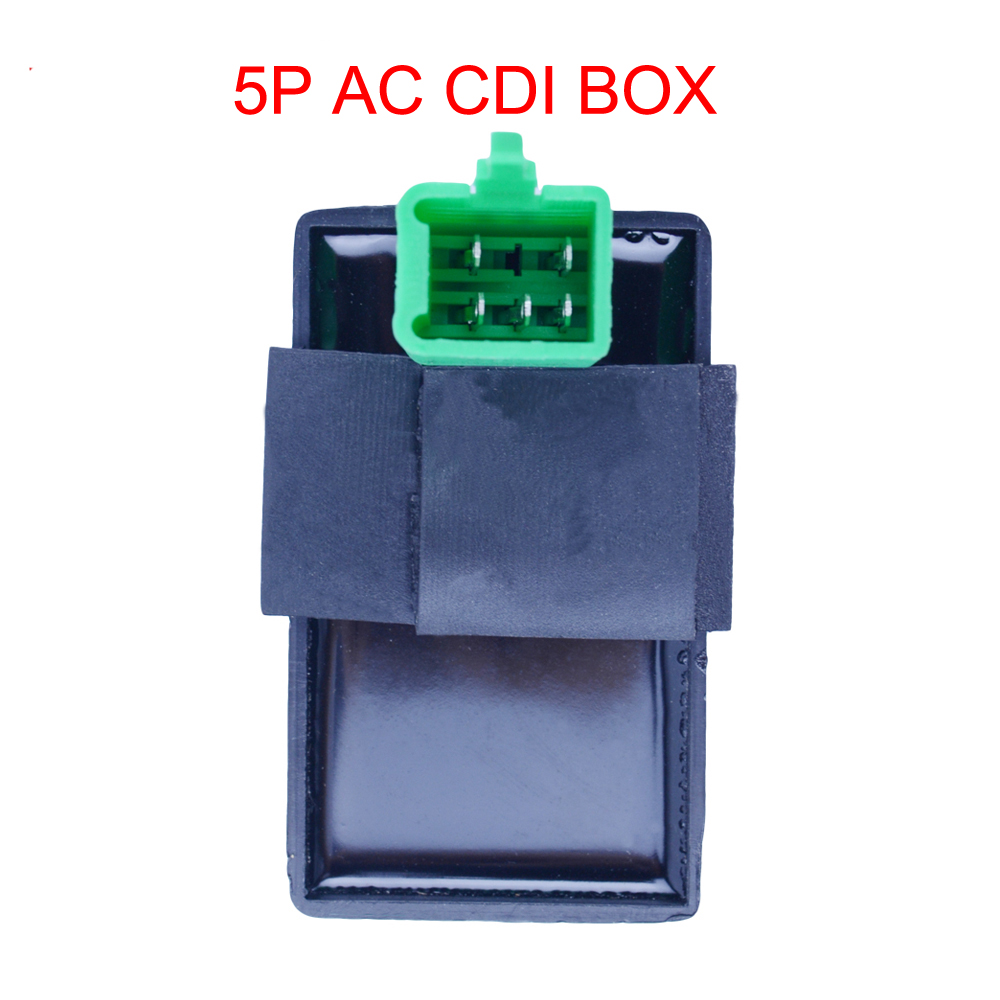

Brand New Aftermarket AC 5P CDI BOX
Type: AC 5P CDI BOX
Fit for: Honda style 4 stroke engine fitted in PIT BIKES DIRT BIKES QUADS MINI MOTO 50-125cc engines

Mechanics Note on distinguishing AC fired or DC fired CDI box :
1. In the GY6 6-plug set-up, you have AC if you have 3-wires going into the 4-plug side and you have 2-wires going into the 2-plug side. On the other hand, you have DC if you have the larger CDI box, 3 or 4 wires going into the 4-plug side and only 1 wire going into the 2-plug side.
2. In general, the DC CDI's tend to be larger in size than the AC ones.For example ,the common AC fired CDI box is length 65 x width 36 x height 22 mm or length 58 x width 33 x height 22 mm ,but common DC fired CDI box is larger than AC fired cdi box in size ,suze as length 75 x width 42 x height 24 mm or length 96 x width 55 x height 24 mm .Certainly this size is only for your common original CDI Box reference,don't include the racing cdi box size ,please note.
3. Another test is if the headlights turn on without the engine running, (with just the key on), it is a DC system. In the AC system the headlight requires the engine to be running. Another indication is, if the engine will only run with a battery it is DC. If it will run without a battery, it is a AC system.

Note: Please check wheather you need the AC fired CDI or DC fired CDI for your scooter before you order,thanks

Package Includes:
1* AC 5P CDI BOX
